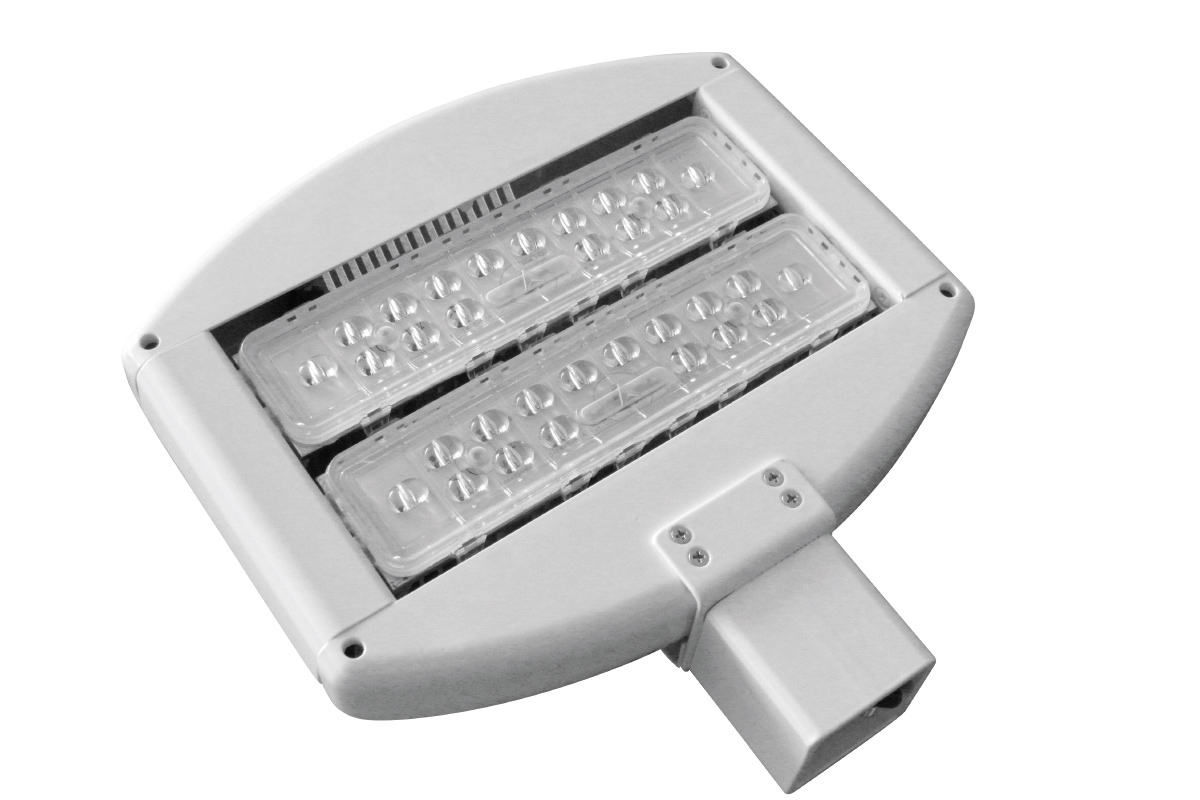

Street LED lamp LSL 07-28

Street LED lamp LSL 07-28

Main parameters and characteristics
Mount type Console
Nominal power consumption, W 60
Power factor, no less than 0.93
Nominal luminous flux, lm, no less than 7,000
Nominal luminous efficiency, lm/W, no less than 115
Circuit voltage, frequency 150 – 270 V, 50/60 Hz
The type of light intensity distribution curve according to GOST 17677:
  • in the transverse plane
  • in the longitudinal plane

Wide, semiexpanded
Special
Light distribution class according to GOST 17677 Direct light
Light distribution type in glare zone Fully limited
Color temperature, К 4,000 (NW) or ≥ 5,000 (CW)
Color rendering index (Ra), no less than 70
Operating temperature range according to GOST 15150 У1 (from -40 to +45°C)
Protection level according to ISO IEC 60598-1:
  • Cover protection level
  • Protection level of light-emitting modules
IP23
ІР66
Rim diameter, mm 39.5-43
Accordance to standards ІЕС 60598-1, ІЕС 60598-2-3, CISPR 15, ІЕС 61000-3-2, ІЕС 61000-3-3, ІЕС 61547
DOWNLOAD IES FILE
Street lighting
Street LED lamp LSL 07-28

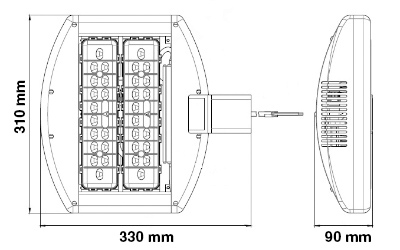

Dimensions of the lamp

LSL 07-28 schema

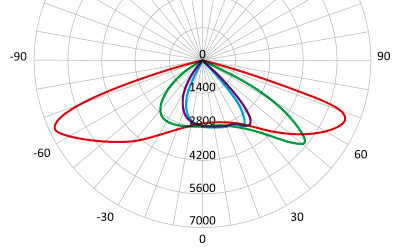

Diagram of light distribution

LSL 07-28
