Highway LED lamp LSL 02-90

Highway LED lamp LSL 02-90

Main parameters and characteristics
Mount type Console
Nominal power consumption, W 192
Power factor, no less than 0.94
Luminous flux, lm, no less than 22,500
Luminous efficiency, lm/W, no less than 117
Circuit voltage, frequency 187 – 253 V, 50/60 Hz
The type of light intensity distribution curve according to GOST 17677:
  • in the transverse plane
  • in the longitudinal plane


Wide
Special
Light distribution class according to GOST 17677 Direct light
Light distribution type in glare zone Fully limited
Color temperature, К 4,000 (NW) or ≥ 5,000 (CW)
Color rendering index (Ra), no less than 70
Operating temperature range according to GOST 15150 У1 (from -40 to +45°C)
Protection level according to ISO IEC 60598-1:
  • Cover protection level
  • Protection level of light-emitting modules

IP23
ІР66
Product weight, kg 10.5
Package weight, kg 11.5
Accordance to standards ІЕС 60598-1, ІЕС 60598-2-3, CISPR 15, ІЕС 61000-3-2, ІЕС 61000-3-3, ІЕС 61547

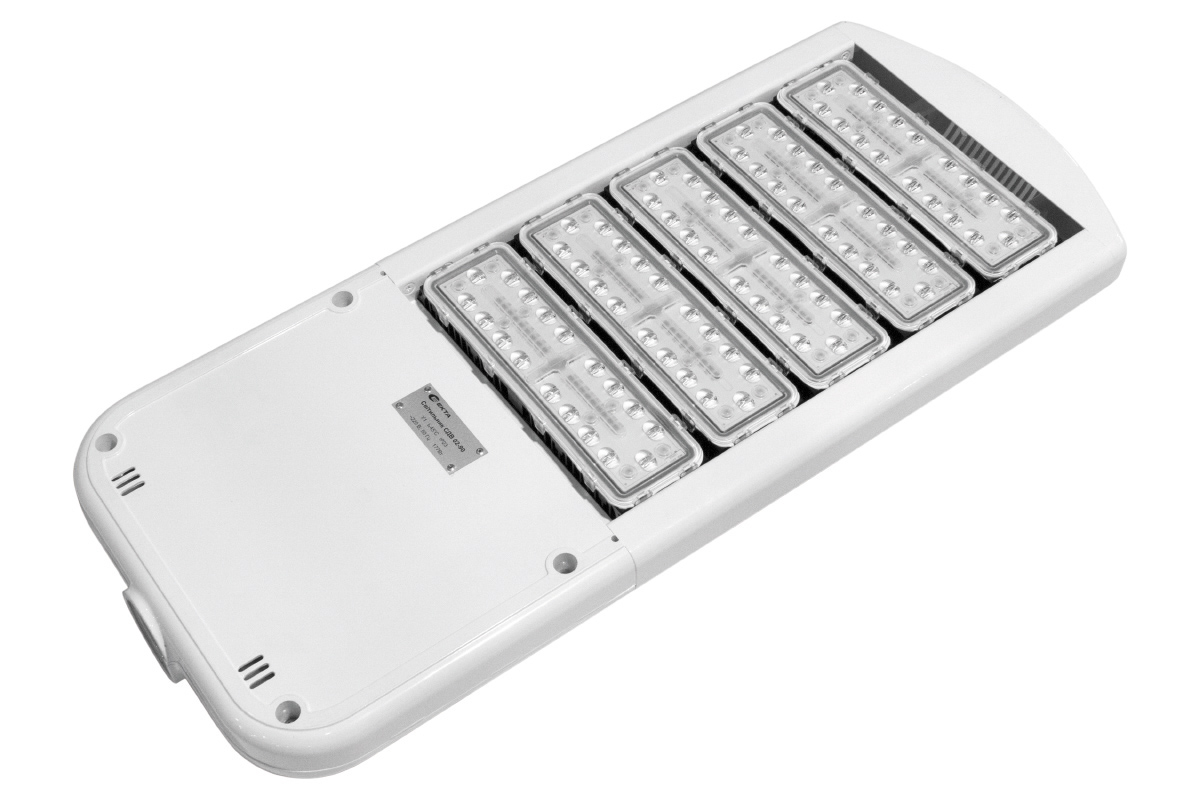

Highway LED light

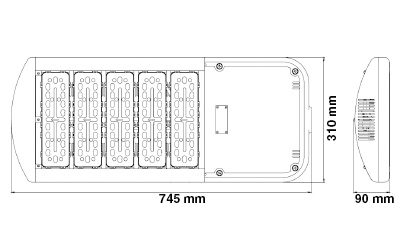

Dimensions of the lamp

LSL 02-90 scheme

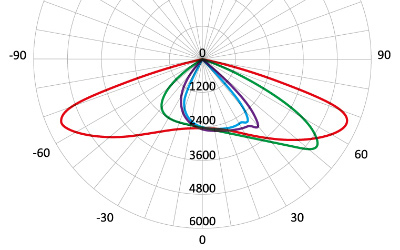

Diagram of light distribution

LSL 02-90
